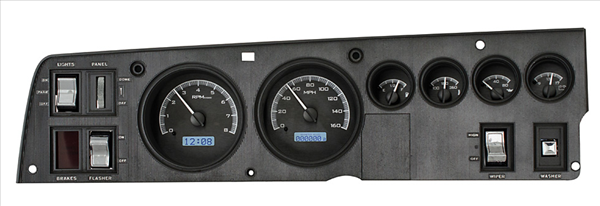

Dakota Digital, VHX analog dash kit for 1968-70 Dodge Charger/Super Bee 1969-70 Coronet, 1970 Plymouth GTX/Roadrunner. Available in black alloy face with white illumination.

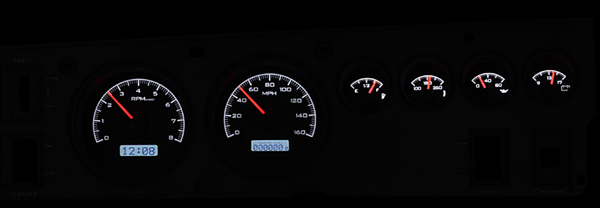

The new VHX analog systems fit directly into the stock instrument bezel of 1968-70 Dodge Charger/Super Bee 1969-70 Coronet, 1970 Plymouth GTX/Roadrunner models without modification, adding a wealth of features to this iconic vehicle. Fully lit needles, backlit faces, and highly visible LCD message center. The VHX Series utilizes an outboard control module which offers several benefits, the most important being simplicity. (Measuring 5.5"x 4.5"x 1") A single ribbon cable connects the display to the control module. On-board diagnostics provide simplified troubleshooting.

The VHX series also includes laboratory-grade solid state sensors, as well as 12’ harnesses with weather-tight connections. Oil pressure and water temp sensors contain 1/8" NPT sensors, as well as bushings to convert to 1/4", 3/8", 1/2"NPT, in addition to 12mm and 16mm varieties for late-model GM applications. Displays included with this instrument system: Speedometer (0-255 MPH or KPH), Tachometer, Oil Pressure, Water Temp, Voltmeter, and Fuel Level. Several performance calculations include: 0-60 MPH (0-100 KPH) timer, mile timer, mile speed display, High Speed recall and High RPM recall. Various Indicators can also be displayed such as: Turn Signals, High Beam, Check Engine, Parking Brake, and Cruise Control.

Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear. Utilizing the gear position indicator will require the use of Part number GSS2000 (sold separately). Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.

NOTE: This does not include the dash bezel.
