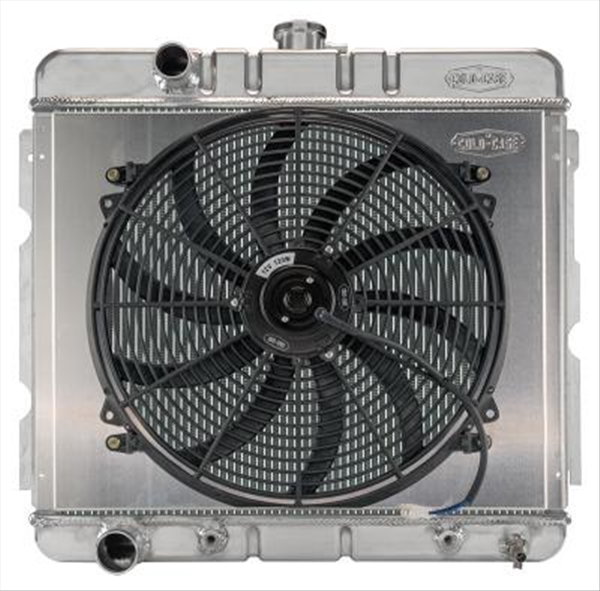

1967-1969 A-Body Cold Case 22" Aluminum Radiator with 16" Fan for models with Small Block Engine.







These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.



These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.



  • 100 percent TIG welded
  • All Aluminum
  • (2) 1.25 inch Tubes
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  •

Radiator Specs



  • Core Height 17 inch
    Core Width 20.75 inch
    Overall Height 22.5
    Overall Width 25.5 brackets
    Overall Thickness 3 inch
    Tubes (2) 1.25 inch Tubes
    Upper Hose 1.50 inch
    Lower Hose 1.50 inch
  • Trans Cooler Fitting: 1/8" National Pipe Thread

NOTE:  This radiator has 1.5" hose inlet/outlets. For other version, see MOP756A-5.
