Click On Image For Detail



Part Number: MOP755K



Ships directly from the manufacturer



* Discount Eligible
* Not Eligible For Free Shipping

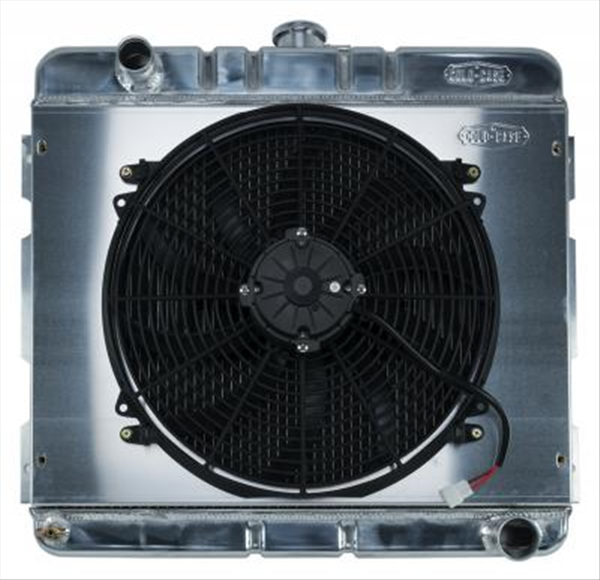

1970-1972 A-Body Cold Case 22" Aluminum Radiator with 16" Fan for models with Small Block Engine and Manual Transmission







These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.



These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.



  • 100 percent TIG welded
  • All Aluminum
  • (2) 1.25 inch Tubes
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual trans
  •

Radiator Specs



  • Core Height 17 inch
  • Core Width 22 inch
  • Overall Height 22.5 inch
  • Overall Width 25 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.77 inch

NOTE: If using original fan shroud, #2785614 and 2998325 will work. Just will need to drill holes into radiator flange.


    70-72 Dart
    71-72 Demon
    71-72 Duster
    71-72 Valiant
