Part Number: TTK79



Ships directly from the manufacturer



* Discount Exempt
* Not Eligible For Free Shipping

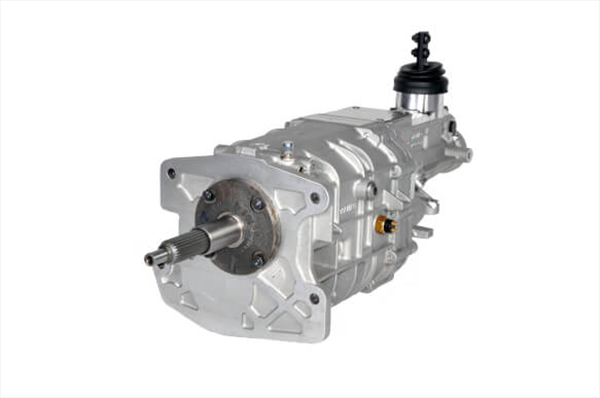

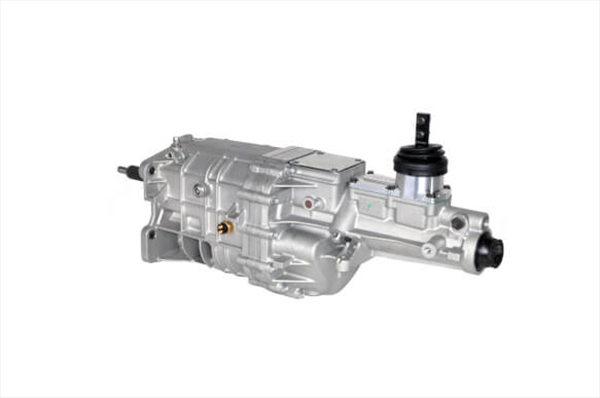

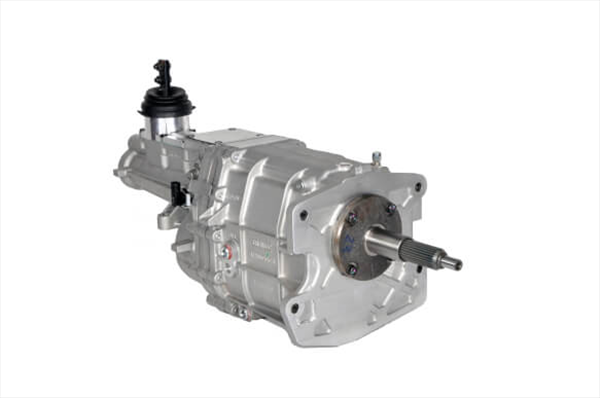

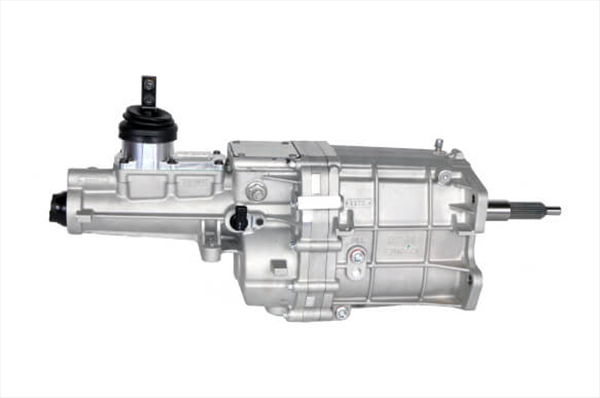

Tremec TKX Ford 5 speed transmission.







TKX 5-Speed Manual Transmission Features and Benefits

  • The all-new 5-speed, single overdrive manual transmission
  •  Designed, tested and built specifically for the aftermarket.
  • The TKX has 600 lb.-ft. of torque capacity and is capable of
  •     engines speeds of 8,000 RPMs with shifts at 7,500 RPMs.
  • Designed for multiple applications with three shifter locations.
  •     Compact, end-loaded design provides clearance in most
  •      transmission tunnels without floor modifications.
  •  Increased case strength with three-piece aluminum housing
  •     provides outstanding structural stiffness (includes main case,
  •     intermediate plate and rear extension). Gaskets at all flanges
  •     simplifies installation and eliminates fluid leaks.
  • Superior shift-ability through the use of multi-cone synchronizers.
  • Noise, vibration and harshness (NVH) minimized with gear layout
  •     to best control stress levels. All gears supported by caged
  •     needle bearings to reduce end play on the gears.
  • All gears and shafts made from special grade steel (ASTM 4615)
  •     providing increased torque carrying capacity.
  • Equipped with a high-performance short-throw billet aluminum
  •     shifter that isolates road noise, while providing clean, crisp shifts.
  • Robust design with internal three-rail shift system
  • Wide gear width increases gear life and torque capacity.
  • 26-spline input shaft with a 31-spline output shaft for added strength.
  • Built-in reverse light switch and cruise control safety switch.
  • Separate GM and Ford case patterns and input configurations.
  • Integrated GM and Ford transmission mount patterns.


    26 Spline Input / 31 Spline Output

    Ratios: 2.87, 1.89, 1.28, 1.00, .68

    600 Lb Ft Torque Capability!

MSRP $3361.99
YEARONE Price: $3,081.83
