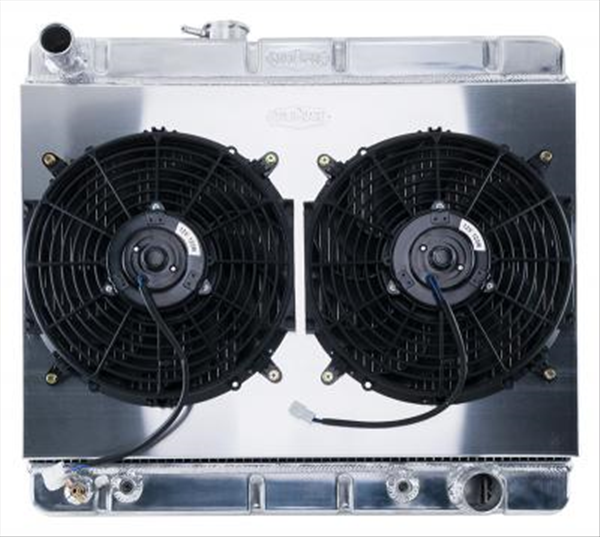

1964-1967 GTO Cold Case Aluminum Radiator with Dual 12" Fans for models with HO/SD Engine and Automatic Transmission with Air Conditioning. See fitment notes below.
Part Number: GPG38ASK
In Stock - Item usually ships within 24 to 48 hours
* Discount Eligible
* Not Eligible For Free Shipping
1964-1967 GTO Cold Case Aluminum Radiator with Dual 12" Fans for models with HO/SD Engine and Automatic Transmission with Air Conditioning. See fitment notes below.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto
Radiator Specs
- Core Height 17-1/2 Inch
- Core Width 25-1/8 Inch
- Overall Height 21-7/8 Inch
- Overall Thickness 3 Inch
- Upper Hose 1-1/2 Inch
- Lower Hose 1-13/16 Inch
- Tubes (2) 1.25 Inch Tubes
- Trans Lines 12-1/4 Inch
- Trans Cooler Fitting: 5/16" Inverted Flare
This is the taller 17.5 Inch core for cars with factory AC. This is our heavy duty model with 2 rows on 1.25 Inch cooling tubes. This is the 66-67 version setup but will work in all 64-67 cars with an AC support. 64-65 owners will need a new upper hose or to swap out water necks.
