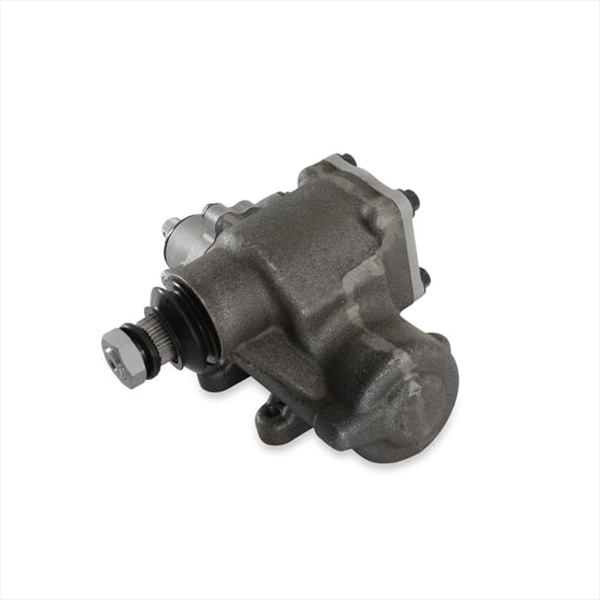

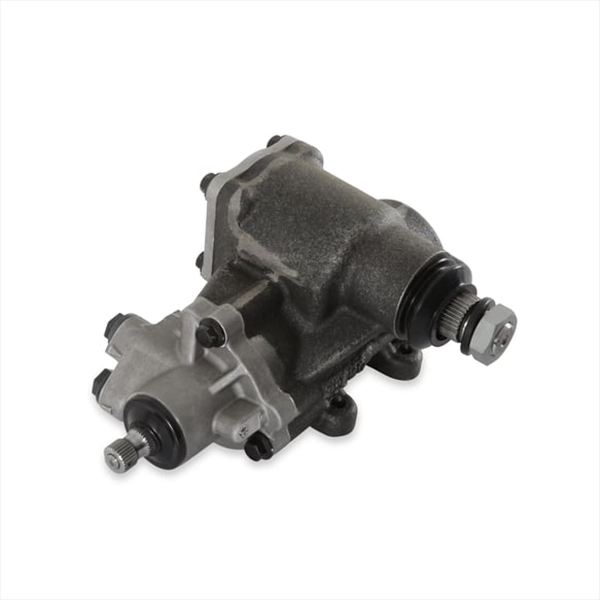

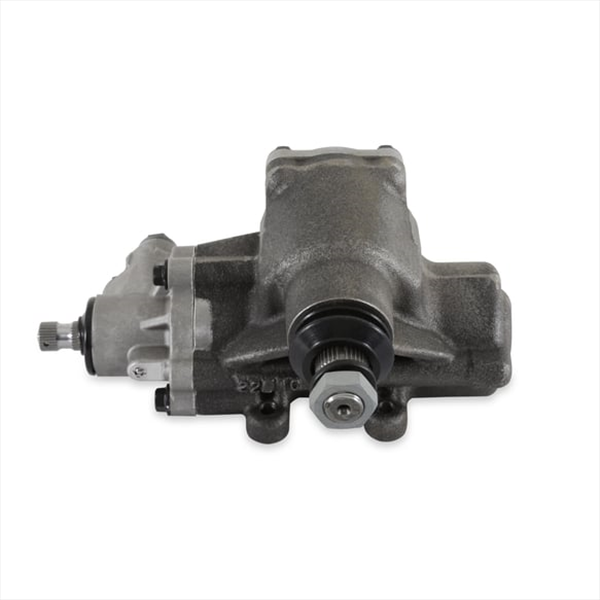

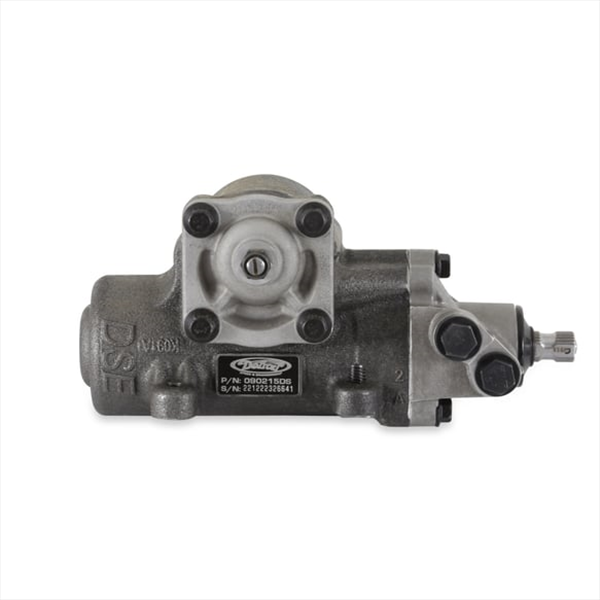

1964-1988 GM Detroit Speed 12.7:1 Ratio Power Steering Box
Part Number: 090215DS
Ships directly from the manufacturer
* Discount Eligible
* Not Eligible For Free Shipping
1964-1988 GM Detroit Speed 12.7:1 Ratio Power Steering Box
- All new steering gear unit, not rebuilt
- Fits 1982-92 Camaro/Firebird with no modification to the
- steering box or the frame.
- Improved steering feel due to low friction gear design
- "Detroit Tuned" precision rack and pinion valve technology
- Late model performance car feel
- Quick Ratio 12.7:1 (3 turns lock-to-lock) - desirable quick
- ratio that is hard to find in a stock OEM steering box
- Original power pitman arm may be used - or PN 092301DS
- (for 1967-1969 Camaro & 1968-1972 Nova).
- A 3/4-inch x 30-spline (3-1/4"OD) rag joint may be required
- with this steering box and is available through Detroit Speed -
- PN 090205DS
- New O-ring style power steering hoses are needed - PN
- 091202DS recommended
- Steering Gear Pressure and Return Fittings not included -
- PN 090202LDS (pressure) & 090202SDS (return) recommended
- Raw Unpainted finish
The Detroit Speed quick ratio steering gearbox provides modern late model steering performance similar to a rack & pinon with easy bolt-in installation. This steering box can replace the GM/Delphi 800 series or GM/Delphi 600 series power steering box. This steering box has a raw unpainted finish.
