Part Number: CHE543A



Ships directly from the manufacturer



* Discount Eligible
* Not Eligible For Free Shipping

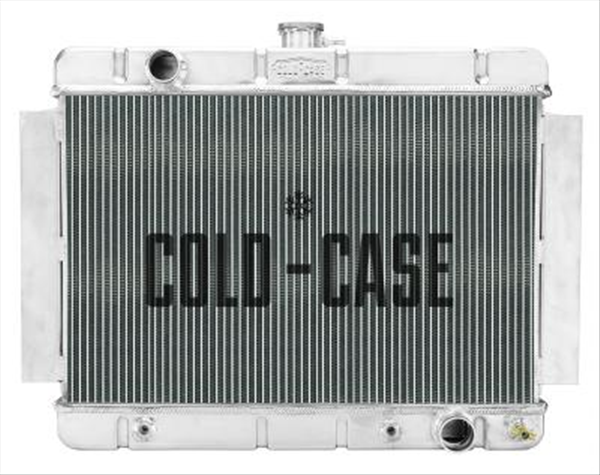

1966-1967 Chevelle El Camino Cold Case Aluminum Radiator for models without Air Conditioning.







This is the configuration with a center filler and upper inlet offset on driver side. 23" wide core without AC applications but will fit all V8. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.



  • 100 percent TIG welded
  • (2) 1.25 inch Rows
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual/standard trans

Radiator Specs



  • Core Height 15.5 Inch
  • Core Width 24 Inch
  • Overall Height 21.25 Inch to cap
  • Overall Width 28.5 brackets Inch
  • Overall Thickness 3 Inch
  • Tubes (2) 1.25 Inch Tubes
  • Upper Hose 1.5 Inch
  • Lower Hose 1.75 Inch
  • Trans Cooler Fitting: 5/16" Inverted Flare
  •

MSRP $475.99
YEARONE Price: $435.54
