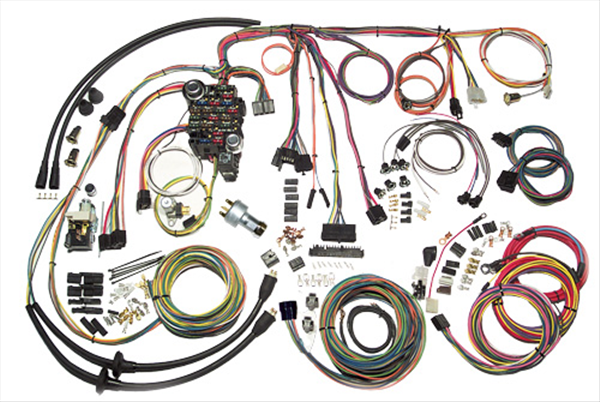

1957 Chevy American Autowire classic update complete wiring harness kit.

1. Original headlight bucket grommets, parking light weatherproof
2. boot, tube assemblies, and light sockets are included. Extra
3. long leads are supplied for custom routing. Accessory
4. disconnect provided for connections to power windows,
5. power seats, cruise control, fuel pump, power door locks,
6. extra radio (CB), or optional power accessory. New floor
7. dimmer switch is provided. Wire length and connection
8. accommodate original floor mounted dimmer switch.
9. Standard turn signal flasher, hazard flasher, and horn
10. elay mounted on fuse panel. Fuse box and custom
11. mounting plate are designed for bolt-on, under dash
12. installation. All required hardware supplied. Steering
13. column connectors will plug directly into most
14. aftermarket steering columns as well as 1969 and
15. later GM columns which utilize stock GM turn signal
16. switches. The original column can also be wired by
17. using the supplied mating connector and terminals.
18. Heater control panel lighting, power, and blower motor
19. leads are included for original style heaters as well as
20. aftermarket heat and AC updates. Instrument Cluster
21. wiring is designed with a “cluster harness disconnect”
22. system for easy service and assembly. All original
23. terminals, connectors, and light sockets are also
24. supplied for original cluster gauges. Replacement
25. headlight switch with internal circuit breaker,
26. retention collar nut, adjustable length shaft, custom
27. knob, extra connectors, and instructions are included.

1. Original design rear body weatherproof boot and
2. tube assemblies and original design light sockets
3. make attachment to original or reproduction tail light
4. assemblies an easy plug-in. Rear body harness
5. assembly is designed to plug into the main harness
6. in the original under dash position utilizing existing
7. retention clips. License plate connectors and terminals
8. included. Fuel tank sender wire and terminal included.
9. Special terminals included for original. New ignition
10. switch is included with indexed connector. Additional
11. connectors and instructions are provided to use the
12. original 1957 ignition switches, original style door jamb
13. switches, and overhead dome light. Front lighting includes
14. extra long leads for special routing when custom under
15. hood appearance is desired. All headlight, park light,
16. and directional light connectors and terminals are provided,
17. as well as a switched trigger wire for electric fan relay
18. (usually recommended with AC). Engine wiring includes
19. connectors for points type and HEI distributors. Power
20. and tach connectors supplied for GM HEI distributors.
21. Alternator connectors are supplied for GM “SI” series
22. internal regulator and “one wire” alternators. Engine wiring
23. includes starter and gauge sender leads for water temp,
24. oil pressure, and tach. Heavy 8 gauge alternator leads
25. are supplied. Power circuits are fusible link protected.
26. Color schematics and easy to understand installation
27. instructions included.
