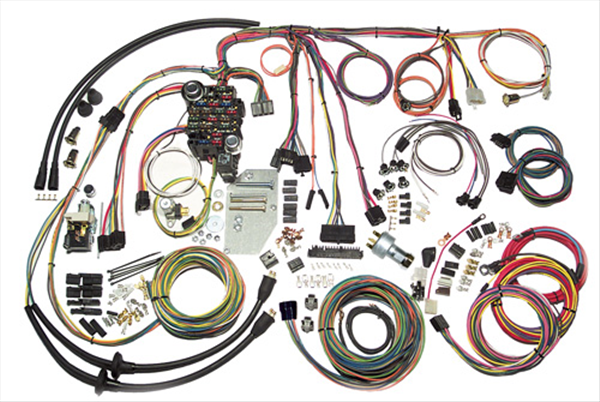

1955-1956 Chevy American Autowire classic update complete wiring harness kit.

1. Original headlight bucket grommets, parking light weatherproof
2. boot, tube assemblies, and light sockets are included. Extra long
3. leads are supplied for custom routing. Accessory disconnect
4. provided for connections to power windows, power seats, cruise
5. control, fuel pump, power door locks, extra radio (CB), or optional
6. power accessory. New floor dimmer switch is provided. Wire length
7. and connection accommodate original floor mounted dimmer switch.
8. Standard turn signal flasher, hazard flasher, and horn relay
9. mounted on fuse panel. Fuse box and custom mounting plate are
10. designed for bolt-on, under dash installation. All required hardware
11. supplied. Steering column connectors will plug directly into most
12. aftermarket steering columns as well as 1969 and later GM columns
13. which utilize stock GM turn signal switches. The original column can
14. also be wired by using the supplied mating connector and terminals.
15. Heater control panel lighting, power, and blower motor leads are
16. included for original style heaters as well as aftermarket heat and AC updates. Instrument Cluster wiring is designed with a “cluster
17. harness disconnect” system for easy service and assembly. All
18. original terminals, connectors, and light sockets are also supplied
19. for original cluster gauges. Replacement headlight switch with
20. internal circuit breaker, retention collar nut, adjustable length
21. shaft, custom knob, extra connectors, and instructions are
22. included.
23.
24. Original design rear body weatherproof boot and tube assemblies
25. and original design light sockets make attachment to original or reproduction tail light assemblies an easy plug-in. Rear body
26. harness assembly is designed to plug into the main harness in
27. the original under dash position utilizing existing retention clips.
28. License plate connectors and terminals included. Fuel tank
29. sender wire and terminal included. Special terminals included
30. for original. New ignition switch is included with indexed
31. connector. Additional connectors and instructions are provided
32. to use the original 1955-56 and 1957 ignition switches, original
33. style door jamb switches, and overhead dome light. Front lighting
34. includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light, and directional light connectors and terminals are provided, as well as a switched
35. trigger wire for electric fan relay (usually recommended with AC).
36. Engine wiring includes connectors for points type and HEI
37. distributors. Power and tach connectors supplied for GM HEI
38. distributors. Alternator connectors are supplied for GM “SI”
39. series internal regulator and “one wire” alternators. Engine
40. wiring includes starter and gauge sender leads for water
41. temp, oil pressure, and tach. Heavy 8 gauge alternator
42. leads are supplied. Power circuits are fusible link protected.
43. Color schematics and easy to understand installation
44. instructions included.
